2026 Honda Pioneer 520
Price excludes $215 doc fee, OEM freight, dealer setup and government fees. Sale prices include all applicable offers.
Stock/unit photos are AI generated. They are a best estimation of the final product, but accuracy is not guaranteed.
Saved by 0 shoppers

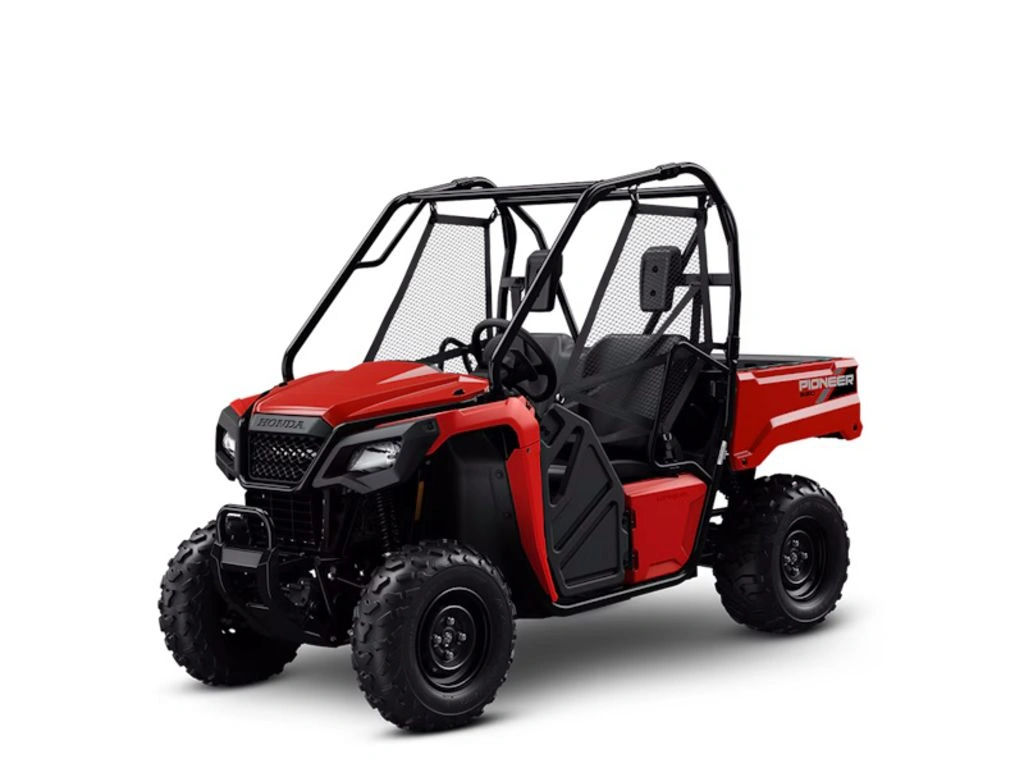

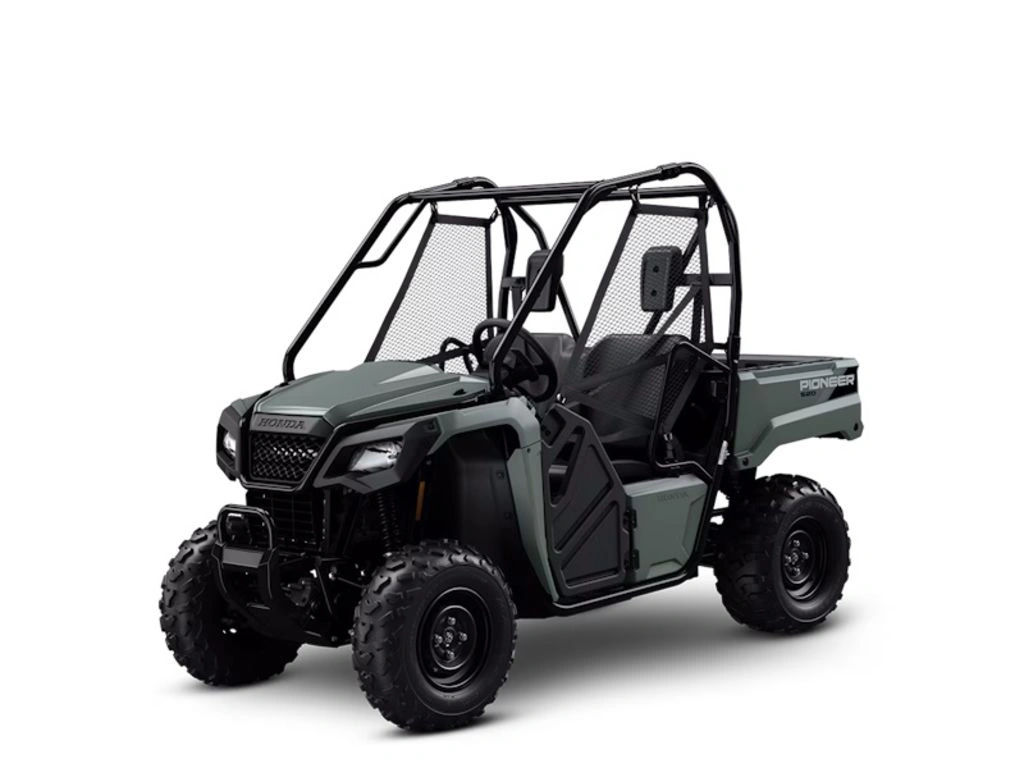

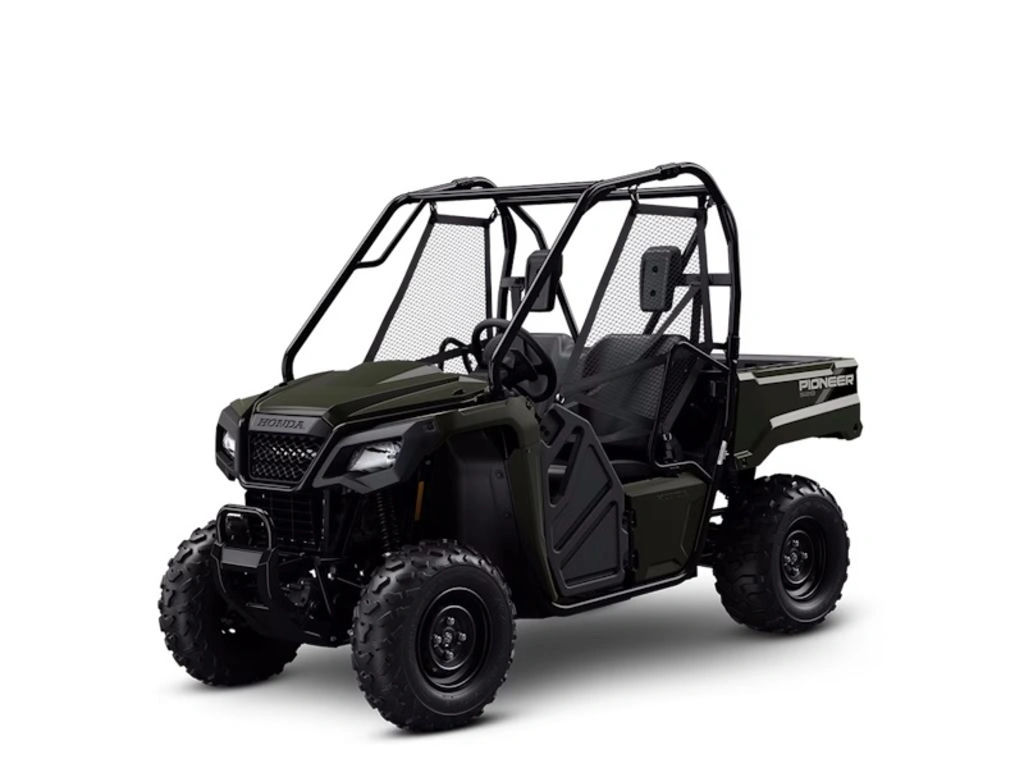

2026 Honda® Pioneer 520
Small footprint, bigger capabilitiesCompact yet mighty, the updated 2026 Pioneer 520 offers exceptional versatility with its 518cc engine, 50-inch width, and 1000-pound towing capacity. Now with increased top speed, standard under-seat storage, and improved heat management to keep the cabin cooler, it's perfectly designed to fit your life's adventures.
Features may include:
- POWERFUL 518cc ENGINE
With an engine that’s both bigger and more powerful than our Pioneer 500’s, the Pioneer 520 also features electronic fuel injection. The engine is specially tuned for low-rpm torque and coupled with an efficient five-speed automatic transmission.
- AUTOMATIC TRANSMISSION WITH AT/MT MODE
You can let the Honda Pioneer 520’s automatic transmission shift for you, or you can still shift yourself with its paddle shifters. You can even shift from auto to manual (AT to MT) on the fly!
- TILT/DUMP BED
The Pioneer 520 features a super-convenient tilt/dump bed that can carry up to 450 pounds. An assist strut makes dumping easy, the tailgate opens flat, and the inside of the bed is set up for plywood dividers, or to hold milk crates or plastic buckets.
- COMPACT 50-INCH WIDTH AND TRAXLOK® 2WD/4WD
The Pioneer 520’s 50-inch overall width is a huge bonus, whether it’s for width-restricted trails or convenient transportation and storage (it fits into the bed of most full-sized pickups). Plus, TraxLok lets you choose either 2WD or 4WD
- Sale Price$10,999
- LocationMotosport
- ConditionNew
- Stock Number104465
- Year2026
- MakeHonda
- ModelPioneer 520
- TypeUtility Vehicle
- CategoryUtility
- VIN1HFVE074XT4104465
- ColorGreen
- EngineLiquid-cooled single-cylinder four-stroke, OHV
- Engine Size518 cc
- Fuel TypeGas
- Transmission5-speed automatic with AT/MT modes
- StatusIn Stock
- Width4.17
- Height5.93
- Fuel Capacity4 gal
| Engine Type | 518cc liquid-cooled single-cylinder four-stroke |
|---|---|
| Bore and Stroke | 96.0mm x 71.5mm |
| Compression Ratio | 9.5:1 |
| Valve Train | OHV; two valves per cylinder |
| Induction | Programmed Fuel-Injection system (PGM-FI); 36mm throttle body |
| Clutch | Automatic |
|---|---|
| Transmission | Five-speed automatic transmission with AT/MT modes |
| Driveline | Direct front and rear driveshafts |
| Front Suspension | Independent double-wishbone; 5.8-inch travel |
|---|---|
| Rear Suspension | Independent double-wishbone; 5.9-inch travel |
| Front Brakes | Dual 200mm discs |
| Rear Brake | Single 170mm disc |
| Front Tires | 24 x 8-12 |
| Rear Tires | 24 x 10-12 |
| Length | 105.0 inches |
|---|---|
| Width | 50.0 inches |
| Height | 71.2 inches |
| Wheelbase | 73.0 inches |
| Bed Size (L x W x H) | 25.9 x 38.7 x 9.8 inches |
| Bed Capacity | 450 pounds |
| Towing Capacity | 1000 pounds |
| Ground Clearance | 8.5 inches |
| Turning Radius | 12.8 feet |
| Curb Weight | 1060 pounds (includes all standard equipment, required fluids and a full tank of fuel) |
| Fuel Capacity | 4.1 gallons |
| Seating Capacity | 2 |
|---|---|
| Safety | Recommended for drivers 16 years of age and older |
| Warranty | Transferable, one year included, limited warranty |
