2023 Harley-Davidson RH1250S - Sportster® S

Stock Photo

Stock/unit photos are AI generated. They are a best estimation of the final product, but accuracy is not guaranteed.

‹ ›

•
•
•
•
•
•

SaveSaved Ask Share

39 views

Info Photos Specifications

2023 Harley-Davidson® Sportster® S

The Sportster S opens the first chapter of an entirely new book in the Sportster saga. Born in 1957, a legacy that beat out the competition has now been rebuilt to shatter the standards of the present day.

Features may include:

THIS BIKE IS A FIT FOR

• Riders seeking top-of-the-line performance and striking style

• Riding aggressively with the agility and handling of a sport bike

• Making a statement and setting yourself apart from the pack

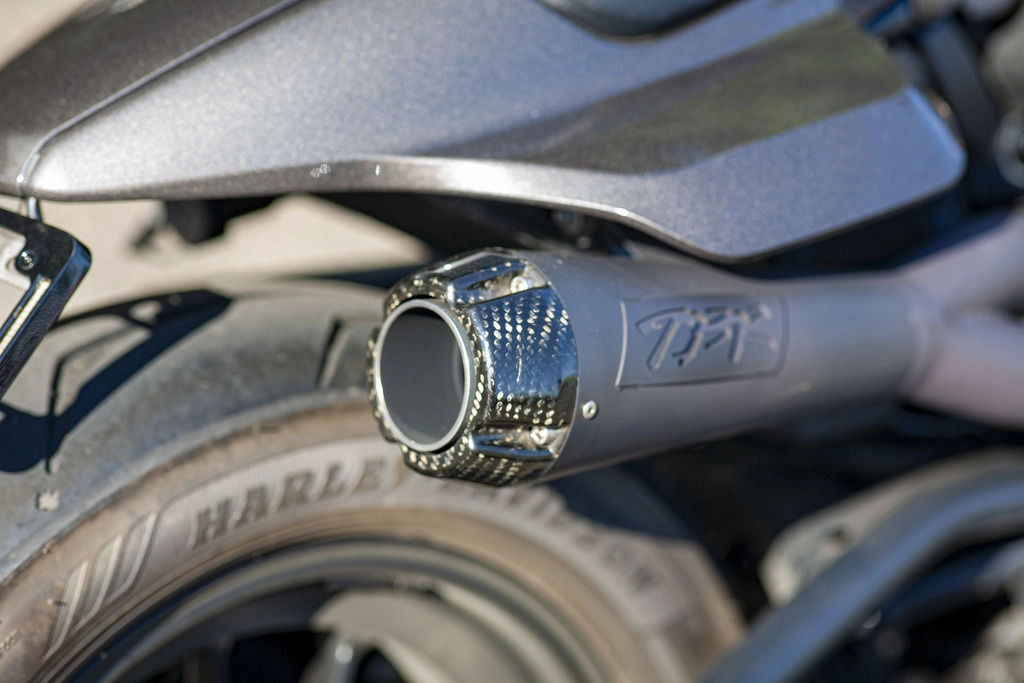

• HIGH-MOUNTED EXHAUST

Drawing inspiration from the glory days of H-D flat-track racing, the pipes are made of corrosion-resistant 304-series stainless steel and designed to direct exhaust heat away from the rider’s legs and the tail section.

• INSTRUMENT DISPLAY

A Bluetooth-equipped, 4” round thin-film transistor LCD display holds every piece of information you need: digital gauges, indicators, ride modes, plus turn-by-turn navigation through the Harley-Davidson app. Buttons on the left- and right-hand controls give access to every function.

• CHASSIS

Doing away with a traditional frame, the Revolution Max 1250T serves as a structural component of the motorcycle chassis — which substantially cuts overall weight and keeps handling precise. You can feel this performance, with a low center of gravity and a super rigid chassis.

• Sale Price$11,499
• LocationHillsboro, Oregon
• ConditionPre-Owned
• Stock Number306619
• Year2023
• MakeHarley-Davidson
• ModelRH1250S - Sportster® S
• TypeMotorcycle
• CategorySport
• VIN1HD1ZC411PB306619
• Mileage3,223
• Engine Size1252
• Horsepower90
• Fuel TypeGas
• StatusIn Stock
• Fuel Capacity3 gal

General

Year	2023
Manufacturer	Harley-Davidson®
Model Name	RH1250S Sportster® S
Trim Name	Base
Generic Type (Primary)	Sport

Pricing

Vivid Black	$16,399
Color Option	$16,849
ABS Option	Standard
Security Option	Standard
Cruise Control Option	Standard
California Emissions	$200
Freight	$700

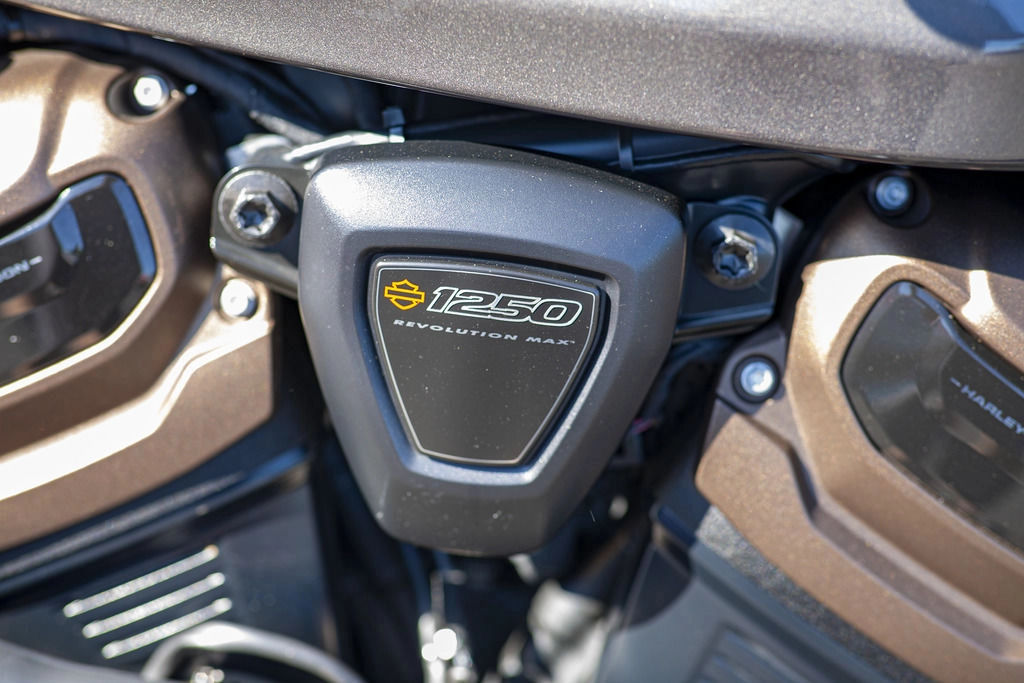

Engine	Revolution® Max 1250T
Bore	4.134 in.
Stroke	2.846 in.
Displacement	76.4 cu in
Compression Ratio	12.0:1
Fuel System	Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust	2-into-1-into-2; catalyst in muffler

Dimensions

Length	89.4 in.
Seat Height, Laden	28.9 in.
Ground Clearance	3.5 in.
Rake (steering head) (deg)	30
Trail	5.8 in.
Wheelbase	59.8 in.
Tires, Front Specification	160/70R17 73V
Tires, Rear Specification	180/70R16 77V
Front Tire	Dunlop® Harley-Davidson Series, radial
Rear Tire	Dunlop® Harley-Davidson Series, radial
Fuel Capacity	3.1 gal.
Oil Capacity (w/filter)	4.75 qt.
Weight, As Shipped	487 lb.
Weight, In Running Order	502 lb.

Performance

Engine Torque Testing Method	J1349
Engine Torque	94 ft-lb
Engine Torque (rpm)	6000
Engine Power	121 HP / 90 kW @ 7500 rpm
Lean Angle, Right (deg.)	34
Lean Angle, Left (deg.)	34
Fuel Economy: Combined City/Hwy	49 mpg

Drivetrain

Primary Drive	Gear, 49/89 ratio
Gear Ratios (overall) 1st	12.21
Gear Ratios (overall) 2nd	9.022
Gear Ratios (overall) 3rd	6.994
Gear Ratios (overall) 4th	5.641
Gear Ratios (overall) 5th	4.731
Gear Ratios (overall) 6th	4.131
Front Fork	43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.
Rear Shocks	Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
Wheel Type, Front	Aluminum cast, satin black
Wheels Type, Rear	Aluminum cast, satin black
Brakes, Caliper Type	Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper

Electric

Lighting	All LED headlamp, low and high beam with signature position lighting. All LED Tail/Stop lamp with signature tail lighting
Gauges	4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)
Features	Type: Color TFT | Screen Size: 4 in. | Headset Specifications (If Equipped): Bluetooth
